Power System SL (Left-hand thread)

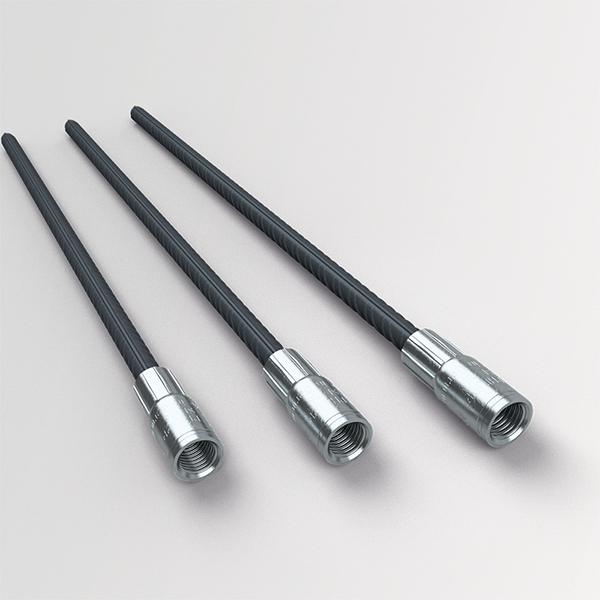

Threaded transport anchor SL - straight version
Straight tail threaded transport anchors can be used universally for various precast concrete elements on the one hand, but on the other hand they can show their capabilities in e.g. bar-shaped elements or walls. Either with extremely thin or heavy prefabricated elements – depending on the element type and its dimensions different sizes are available. Axial-, diagonal and lateral tension are no problem for the threaded anchor with straight tail.

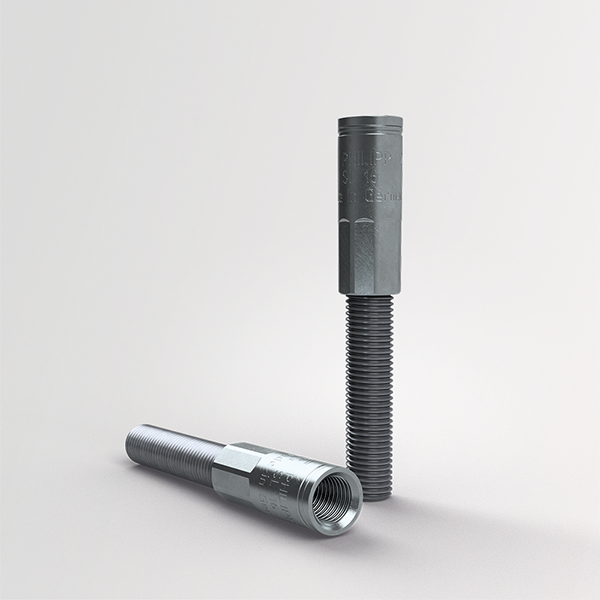

Threaded transport anchor elongation SL
The anchor elongation is intended for applications where it is not possible to lift off directly at the transport anchor. E.g. with cubicles in prefabricated construction with subsequently mounted roof element, the transport of the complete module is thus possible. Here, the elongation is screwed into an existing threaded transport anchor (of the cubicle) through a recess in the roofing slab.

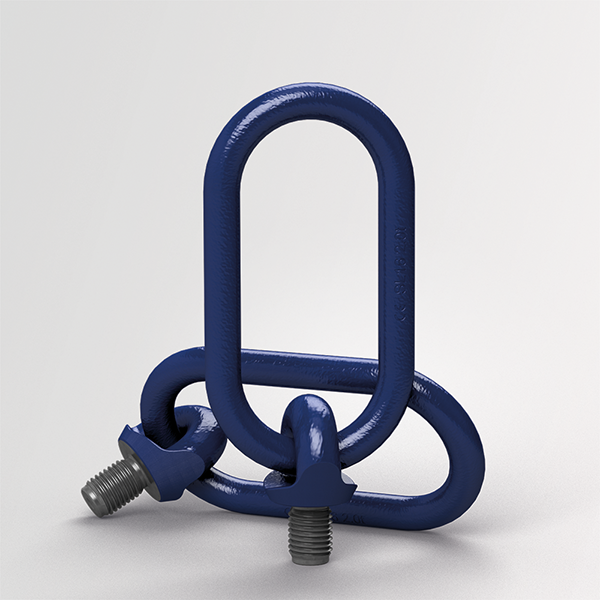

Lifty SL
For a daily use in the precast plant or on the construction site the Lifty SL is a robust and universally applicable lifting device for the PHILIPP Power System SL. It consists of a forged ring bolt with a welded chain link, both galvanised.

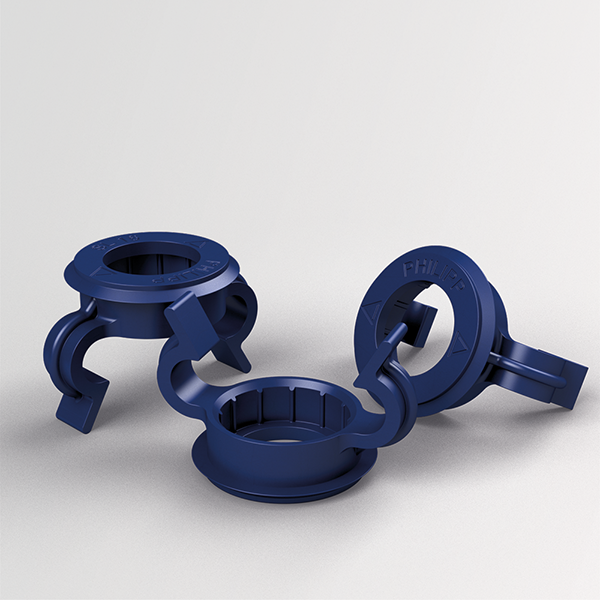

Marking ring SL with clip
With the Marking ring SL with clip on the one hand a clear identification of the anchor when installed is possible and on the other hand to secure the position of the optional additional reinforcement (for diagonal or lateral tension). Due to the explicit colour coding a quick and correct assignment to the corresponding lifting device is ensured.

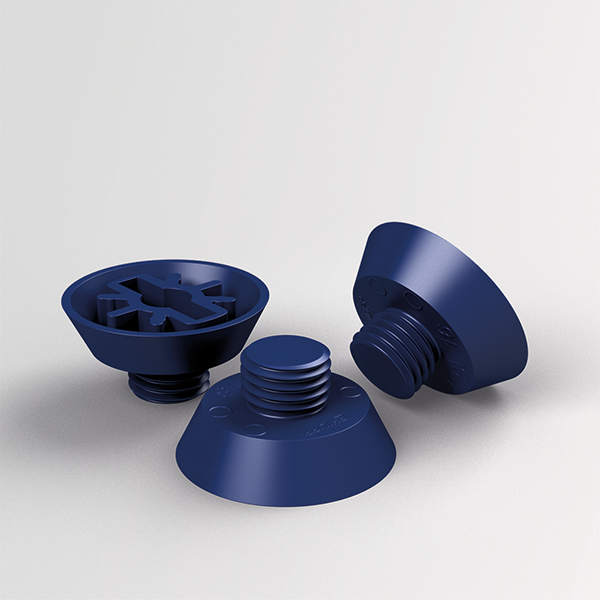

Plastic recess former SL
The Plastic recess former SL is used to fix the Threaded transport anchor SL to the mould tightly. This can be done either by nailing or hot gluing of the Nailing plate SL before the anchor is screwed on.
